Savings Comparison Analysis

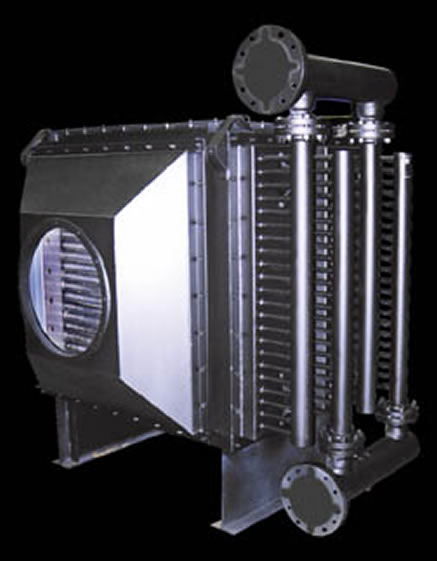

UTR1-814G16CSP

Data without a Cain System

Combustion source:  Engine Generator

Heat Sink: 50% Glycol / 50% Water Loop

Waste Exhaust Temp:  645 °F

Water Temp Inlet:250°F

SCFM: 6,739

Fuel Type: Natural gas

O2 Content:   N/A

Excess Air: N/A

Fuel Cost Per Therm:  $0.60

Annual Operating Hours: 6,000

Performance with a Cain System

Circulating Liquid Flow :  400 GPM

Final Exhaust Temp: 357 °F

Water Temp. Outlet:  263.3 °F

Water Pressure Drop:  0.04 PSIG

Exhaust Pressure Drop:  2.00 WC"

Btu/hr Recovered:  2,341,000

Total Cost:  $22,455

Payback:  4.8 months

Annual Return On Investment: 250 %

Annual Savings:  $56,176
